Selecting the right gondola shelving dimensions directly impacts your store’s merchandising capacity, customer flow, and sales performance. This guide provides exact measurements, industry-standard specifications, and practical selection criteria to help you make informed purchasing decisions for your retail environment.
Key Takeaways
- Standard gondola shelving heights range from 48 inches to 96 inches, with 54″ and 72″ being the most commonly installed in convenience stores and supermarkets respectively
- Base shelf depths typically measure 16″, 19″, 22″, or 24″, while upper shelves are usually shallower at 13″ to 19″ for optimal product visibility
- Double-sided (island) gondola units have combined depths of 32″ to 48″, requiring careful aisle width planning to meet ADA compliance standards
- Shelf width options of 36″ and 48″ accommodate different store layouts and product category requirements
- Load capacity varies significantly by dimension, with deeper base shelves supporting 350-500 lbs compared to 150-250 lbs for standard upper shelves
- Proper dimension selection can increase merchandising space by 15-25% without expanding your retail footprint

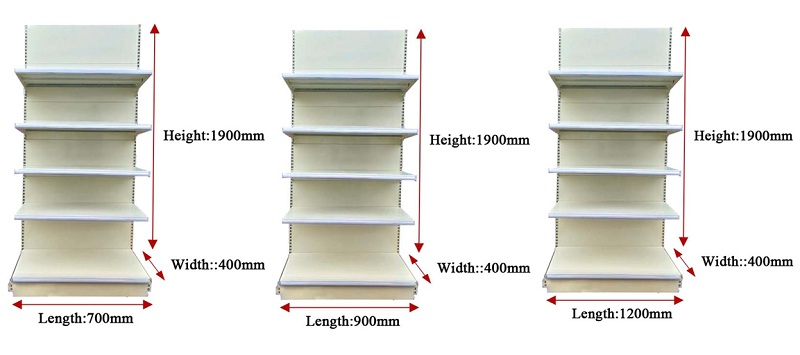

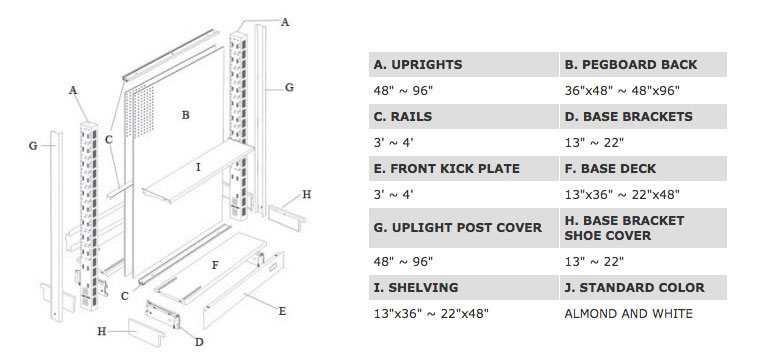

What Are Standard Gondola Shelving Dimensions?
Gondola shelving systems consist of three primary dimensional considerations: height, width, and depth. Each measurement serves specific merchandising functions and must align with your store format, product mix, and customer demographics.
Height Specifications
Gondola upright heights determine your vertical merchandising capacity and influence how customers interact with displayed products.
| Height (inches) | Height (cm) | Recommended Application | Typical Shelf Levels |
|---|---|---|---|
| 48″ | 122 cm | Checkout areas, children’s sections | 3-4 |
| 54″ | 137 cm | Convenience stores, pharmacy aisles | 4-5 |
| 60″ | 152 cm | Small format grocery, specialty retail | 5-6 |
| 72″ | 183 cm | Standard supermarket aisles | 6-7 |
| 84″ | 213 cm | Warehouse stores, high-capacity retail | 7-8 |
| 96″ | 244 cm | Club stores, industrial retail | 8-9 |
Research from retail planning studies indicates that 72-inch gondola shelving delivers the optimal balance between merchandising density and customer accessibility for most grocery and general merchandise environments. Products placed above 72 inches typically see 40-60% lower pick rates due to reach limitations.
Learn more about standard height gondola shelving options
Width Dimensions
Gondola shelf width affects both structural stability and planogram flexibility. Two standard widths dominate the market:
36-inch width works effectively for:
- Narrow aisle configurations
- Specialty product categories requiring frequent facing changes
- Stores with limited floor space
- End cap displays
48-inch width works effectively for:
- High-volume product categories
- Standard supermarket aisle runs
- Bulk merchandise displays
- Cost-efficient installations (fewer uprights required)
A 48-inch wide gondola section requires approximately 25% fewer upright posts than equivalent linear footage using 36-inch sections, reducing both material costs and installation time.
Depth Measurements
Shelf depth represents the most variable dimension in gondola shelving systems. Base shelves and upper shelves typically use different depths to maximize both capacity and visibility.
Base Shelf Depth Options:
| Depth (inches) | Depth (cm) | Best Applications |
|---|---|---|
| 16″ | 41 cm | Light packaged goods, health & beauty |
| 19″ | 48 cm | General grocery, household products |
| 22″ | 56 cm | Beverage, bulky packaged items |
| 24″ | 61 cm | Heavy goods, large format packaging |
Upper Shelf Depth Options:
| Depth (inches) | Depth (cm) | Best Applications |
|---|---|---|
| 10″ | 25 cm | Small items, impulse products |
| 13″ | 33 cm | Standard packaged goods |
| 16″ | 41 cm | Medium-sized products |
| 19″ | 48 cm | Larger items requiring visibility |
Single-Sided vs. Double-Sided Gondola Dimensions
The distinction between wall units and island units fundamentally changes how you calculate space requirements and plan store layouts.
Wall Unit (Single-Sided) Specifications
Single-sided gondola shelving mounts against walls or room perimeters. These units feature:
- Total depth: 16″ to 24″ (single base shelf depth)
- Wall clearance requirement: 2-3 inches for installation and ventilation
- Effective floor space usage: 18″ to 27″ from wall surface
Wall gondolas typically use the full height range up to 96 inches since they benefit from wall anchoring for stability. Higher configurations require wall mounting brackets at 48-inch vertical intervals.
Island Unit (Double-Sided) Specifications
Double-sided gondola units create freestanding aisle fixtures with back-to-back shelving access. Critical dimensions include:
- Combined base depth: 32″ to 48″ (two base shelves plus center upright)
- Center upright/post width: 2″ to 3″
- Total footprint calculation: (Base depth × 2) + center post width

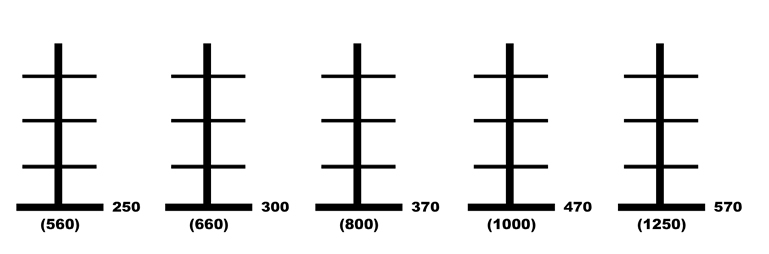

Double-Sided Gondola Total Depth Reference:
| Base Shelf Depth | Center Post | Total Island Width |
|---|---|---|
| 16″ + 16″ | 3″ | 35″ |
| 19″ + 19″ | 3″ | 41″ |
| 22″ + 22″ | 3″ | 47″ |
| 24″ + 24″ | 3″ | 51″ |
For a standard supermarket aisle configuration using 22-inch base shelves on double-sided gondolas with 48-inch aisle clearance, you need 143 inches (approximately 12 feet) of total width per aisle run.
Explore double-sided gondola shelving systems
Gondola Shelving Dimensions by Store Type
Different retail formats have established dimensional standards based on customer behavior patterns, product assortments, and operational requirements.
Convenience Store Dimensions
Convenience stores prioritize quick shopping trips and impulse purchases. Recommended gondola specifications:
- Height: 48″ to 60″ (maintains sight lines for security and customer service)
- Width: 36″ (accommodates narrow store footprints)
- Base depth: 16″ to 19″ (smaller package sizes)
- Aisle width: 36″ to 42″ (single-customer passage)
A 1,500 square foot convenience store typically accommodates 8-12 gondola runs using these dimensions while maintaining adequate circulation space.

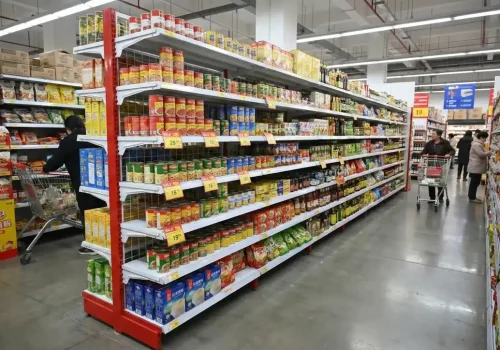

Supermarket and Grocery Store Dimensions
Full-service grocery stores balance merchandising density with shopping cart navigation:
- Height: 72″ to 84″ (maximizes vertical space utilization)
- Width: 48″ (standard for grocery planograms)
- Base depth: 19″ to 22″ (accommodates varied package sizes)
- Aisle width: 48″ to 60″ (allows cart passing)
Pharmacy and Health Store Dimensions
Pharmacy retail environments require specific considerations for product security and customer accessibility:
- Height: 54″ to 72″ (prescription areas often use lower heights)
- Width: 36″ to 48″ (varies by department)
- Base depth: 16″ to 19″ (smaller product footprints)
- Aisle width: 44″ minimum (ADA compliance critical)
Load Capacity by Dimension
Gondola shelving dimensions directly correlate with weight-bearing specifications. Understanding these relationships prevents merchandise damage and safety incidents.
Base Shelf Load Ratings
| Shelf Dimensions (W × D) | Steel Gauge | Load Capacity |
|---|---|---|
| 48″ × 16″ | 22 gauge | 300-350 lbs |
| 48″ × 19″ | 22 gauge | 350-400 lbs |
| 48″ × 22″ | 20 gauge | 400-450 lbs |
| 48″ × 24″ | 20 gauge | 450-500 lbs |
| 36″ × 19″ | 22 gauge | 275-325 lbs |
| 36″ × 22″ | 20 gauge | 325-375 lbs |
Upper Shelf Load Ratings
| Shelf Dimensions (W × D) | Steel Gauge | Load Capacity |
|---|---|---|
| 48″ × 13″ | 24 gauge | 150-175 lbs |
| 48″ × 16″ | 22 gauge | 175-225 lbs |
| 48″ × 19″ | 22 gauge | 225-275 lbs |
| 36″ × 13″ | 24 gauge | 125-150 lbs |
| 36″ × 16″ | 22 gauge | 150-200 lbs |
Heavy merchandise categories like beverages, canned goods, and cleaning products require deeper base shelves with heavier gauge steel construction.
Calculating Your Gondola Shelving Requirements
Accurate dimension planning requires systematic measurement and calculation. Follow this process for reliable results.
Step 1: Measure Available Floor Space
Document your retail floor dimensions, noting:
- Total selling floor area
- Fixed obstacles (columns, utility access, emergency exits)
- Required circulation paths
- Checkout zone allocation
Step 2: Determine Aisle Configuration
Calculate the number of gondola runs based on:
Formula for island gondola runs:
- Store width: 60 feet (720 inches)
- Double-sided gondola depth: 47 inches (22″ + 22″ + 3″)
- Desired aisle width: 54 inches
- Perimeter clearance: 36 inches each side
(720" - 72") ÷ (47" + 54") = 648" ÷ 101" = 6.4 gondola runsThis configuration accommodates 6 complete double-sided gondola runs with standard aisle widths.
Step 3: Calculate Linear Shelf Footage
Determine total merchandising capacity:
Formula:(Number of runs × Run length × Shelves per side × 2 sides) = Total linear feet
Example:
- 6 gondola runs × 40 feet length × 6 shelves × 2 sides = 2,880 linear feet of shelf space
Read our detailed guide on retail store layout planning
Common Dimensional Mistakes to Avoid
Retail planners frequently encounter these dimension-related issues:
Insufficient Aisle Width
Aisles narrower than 44 inches create ADA compliance violations and customer frustration. Shopping cart width (approximately 22 inches) plus passing clearance requires minimum 48-inch aisles for comfortable two-way traffic.
Mismatched Shelf Depths
Using identical depths for base and upper shelves reduces product visibility. The stepped configuration—deeper base shelves with progressively shallower upper shelves—creates natural sight lines and easier product access.
Overlooking Height Restrictions
Ceiling height, sprinkler systems, and lighting fixtures limit practical gondola heights. Maintain minimum 18-inch clearance below sprinkler heads and ensure adequate lighting reaches all shelf levels.
Ignoring Structural Requirements
Taller gondola configurations (84″ and above) require additional stabilization. End caps, cross-bracing, and floor anchoring become mandatory for safety compliance.
Custom Gondola Shelving Dimensions
Standard dimensions serve most retail applications, but specific merchandising requirements sometimes demand customization.
When Custom Dimensions Make Sense
- Unusual store architecture with non-standard ceiling heights
- Specialized product categories with unique display requirements
- Brand-specific fixture programs requiring exact specifications
- High-security retail environments needing integrated features
Custom Dimension Considerations
Custom gondola shelving typically requires:
- Minimum order quantities (usually 50+ sections)
- Extended lead times (8-12 weeks vs. 2-4 weeks for standard)
- Engineering review for structural integrity
- Higher per-unit costs (25-40% premium)
Frequently Asked Questions
What is the standard height of gondola shelving?
The most common gondola shelving heights are 54 inches for convenience stores and 72 inches for supermarkets. Standard options range from 48 inches to 96 inches, with 72-inch units representing the industry benchmark for general retail applications. Height selection depends on store format, ceiling clearance, and target customer demographics.
How deep is a standard gondola shelf?
Standard gondola base shelf depths measure 16, 19, 22, or 24 inches. Upper shelves typically range from 10 to 19 inches deep. Most supermarket installations use 19-inch or 22-inch base shelves paired with 13-inch or 16-inch upper shelves to balance capacity with product visibility.
What is the best gondola shelf height for a small store?
Small retail stores benefit from 54-inch to 60-inch gondola heights. These dimensions maintain customer sight lines across the store for security purposes, keep all products within comfortable reach, and create an open, accessible shopping environment. Lower heights also reduce the intimidation factor in compact retail spaces.
How wide are gondola shelving units?
Gondola shelving sections come in two standard widths: 36 inches and 48 inches. The 48-inch width is most common in grocery and general merchandise retail, while 36-inch sections suit specialty retail, narrow aisles, and end cap displays. Both widths use the same upright post systems for compatibility.
How much space do you need between gondola shelves?
Vertical spacing between gondola shelves typically ranges from 4 to 8 inches, depending on product heights. Most gondola systems offer 1-inch increment adjustability. Standard grocery configurations use 6-inch spacing for upper shelves and 8-10 inches for base shelf clearance to accommodate taller products.
What is the weight capacity of gondola shelving?
Gondola shelf weight capacity varies by dimensions and steel gauge. Standard 48-inch wide base shelves support 300-500 pounds depending on depth and construction. Upper shelves typically handle 150-275 pounds. Always verify load ratings with your supplier and distribute weight evenly across the shelf surface.
Make the Right Decision
Proper gondola shelving dimensions form the foundation of effective retail merchandising.
Spieth manufactures shelving systems in a variety of standard sizes. As a factory-direct supplier, Spieth offers customization, technical consultation, and bulk pricing for retail projects of all sizes. Engineering support ensures your dimensions meet structural requirements and local building codes.
Ready to specify gondola shelving dimensions for your project? Contact Spieth for detailed specifications, CAD drawings, and project quotations. Our technical team responds to dimensional inquiries within 24 hours with comprehensive product information.
