What Is a Supermarket Shelving Layout?
A supermarket shelving layout is the planned arrangement of shelving units, display racks, and store zones to create an efficient shopping environment. A practical layout should help customers move easily through the store, highlight key product categories, make restocking easier for staff, and maximize the use of available floor space.
A well-designed supermarket layout is not only about placing shelves in rows. It should be based on store size, product categories, traffic flow, aisle width, shelf height, promotional areas, and operational efficiency. Choosing the right supermarket shelving system is an important part of this process.
Why Is Supermarket Shelving Layout Planning Important?
- Improve space utilization by making better use of the available floor area
- Guide customer flow with clear aisle organization and zone planning
- Increase product visibility through suitable shelf height and display positioning
- Support faster restocking with practical aisle spacing and shelf access
- Create better category management for grocery, beverages, snacks, fresh food, and promotional items
- Enhance sales opportunities by placing high-margin or promotional products in strategic locations
Key Factors in Planning a Supermarket Shelving Layout
1. Store Size and Floor Plan
The total store area and floor shape determine the number of aisles, shelf depth, shelf height, and display density. Small stores usually require compact layouts, while larger supermarkets can create more defined product zones.
2. Product Categories
Different product categories require different shelving solutions. Grocery aisles, beverages, snacks, fresh produce, bakery products, and checkout items should each have suitable shelf types and display methods.
3. Customer Flow
A clear traffic path helps customers move naturally through the store and improves product exposure. Main aisles, promotional points, and high-traffic areas should be planned carefully.
4. Aisle Width
Aisle width should balance customer comfort and space efficiency. Wider aisles improve shopping convenience, while narrower aisles may help increase display capacity in small stores.
5. Shelf Height and Visibility
Shelf height affects both storage capacity and product accessibility. Shelves should be high enough to maximize display space but low enough to maintain visibility and easy product selection.
6. Restocking Efficiency
A practical shelving layout should allow staff to replenish products quickly and safely. Product depth, aisle spacing, and category placement all affect daily store operations.
7. Promotional Display Areas
End caps, entrance displays, and checkout zones are important for promotions. These areas should be planned to attract attention without interrupting customer movement.
8. Budget and Future Expansion
When selecting supermarket shelving, it is important to consider current investment, long-term durability, and the possibility of future store expansion or layout adjustments.
Recommended Supermarket Shelving by Store Zone

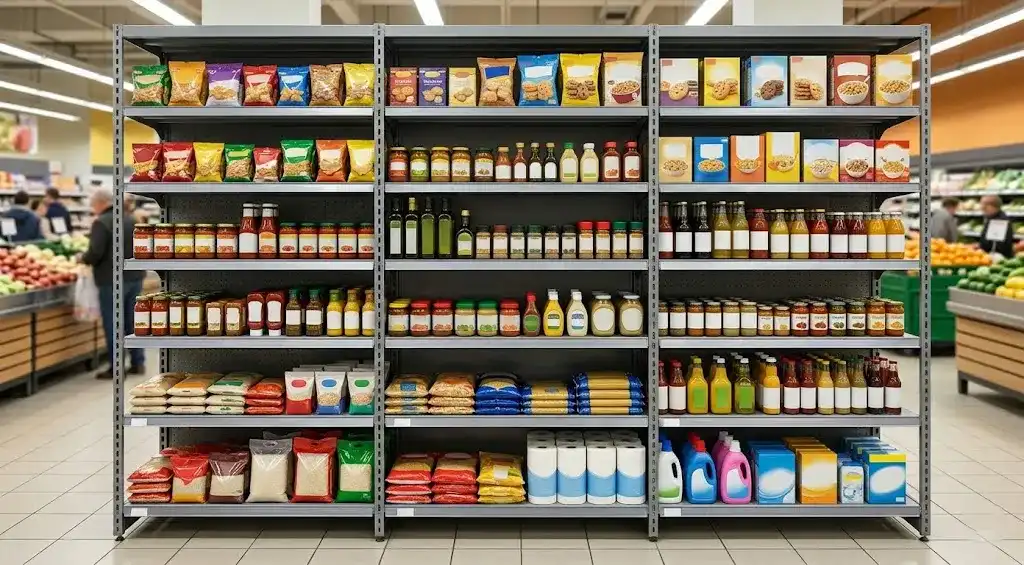

Wall Shelving for Perimeter Display
Wall shelving is commonly used along store walls to maximize vertical display space. It is suitable for packaged food, household products, beverages, and other regular retail items.
Advantages:
- Maximizes wall space
- Creates clear category sections
- Works well with adjustable shelf levels
- Suitable for single-sided display
Gondola Shelving for Central Aisles
Gondola shelving is typically used in the center of the store to create double-sided product aisles. It is one of the most common shelving systems for supermarkets.
Advantages:
- Ideal for central aisle layout
- Double-sided display increases capacity
- Flexible shelf adjustment
- Suitable for grocery, snacks, household goods, and daily products

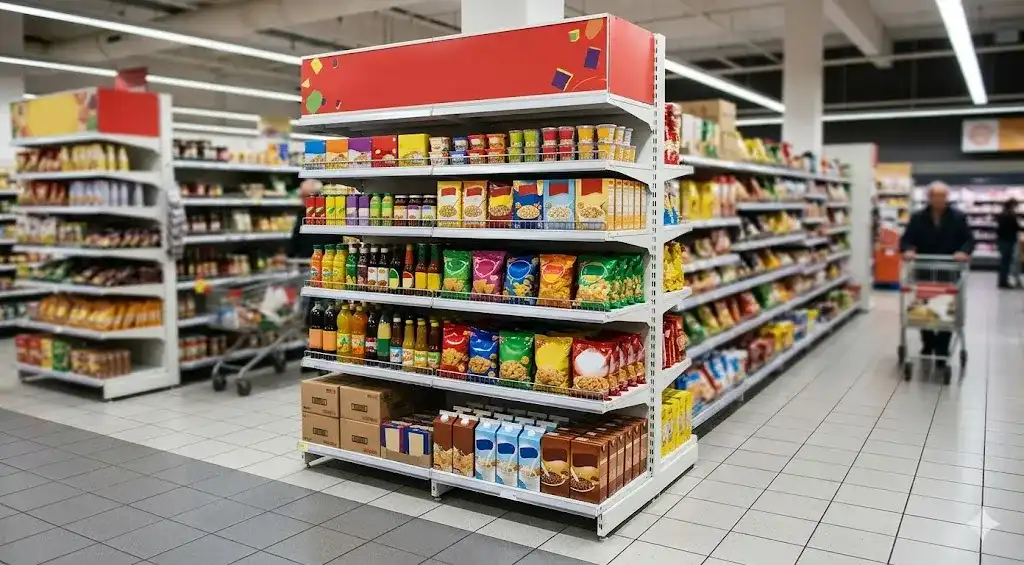

End Cap Shelving for Promotions
End cap shelving is installed at the ends of gondola aisles and is widely used for promotional products, seasonal items, and high-margin displays.
Advantages:
- High product visibility
- Effective for promotions
- Increases impulse purchases
- Easy to combine with gondola shelving

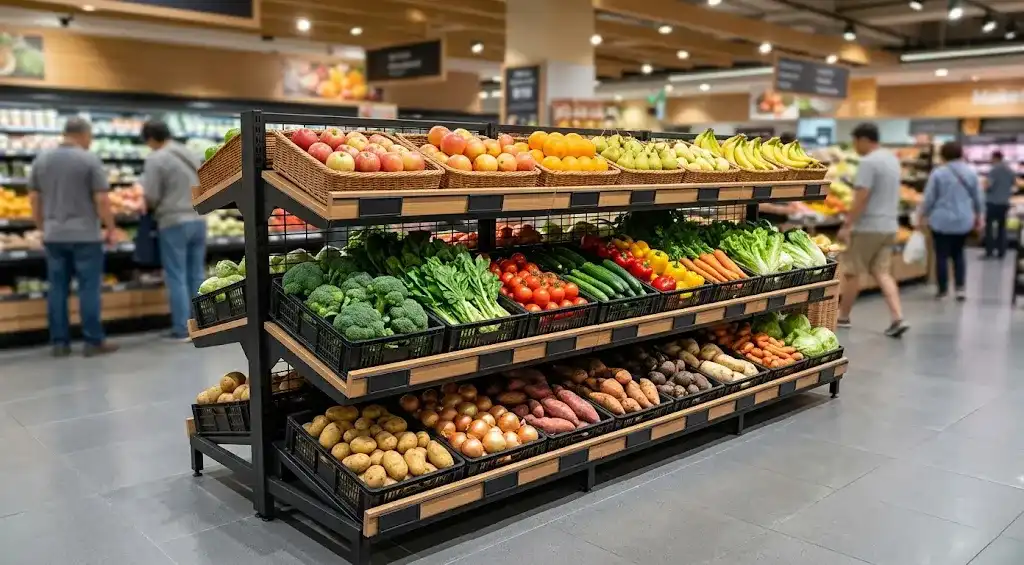

Fruit and Vegetable Racks for Fresh Areas
Fresh produce areas require open and attractive display fixtures. Fruit and vegetable racks are designed to improve presentation, accessibility, and freshness perception.
- Suitable for fresh food zones
- Improves product visibility
- Supports organized produce display
- Available in different tier and basket styles

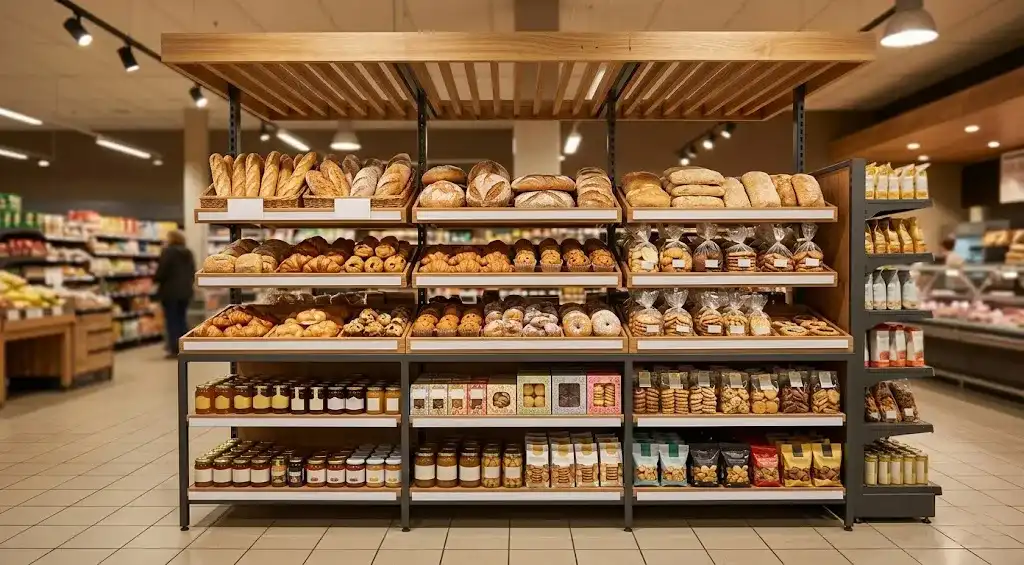

Bakery and Specialty Display Shelving
- Better product presentation
- Flexible design for different categories
- Can support wood, metal, or mixed-material styles
- Helps create a distinct in-store atmosphere

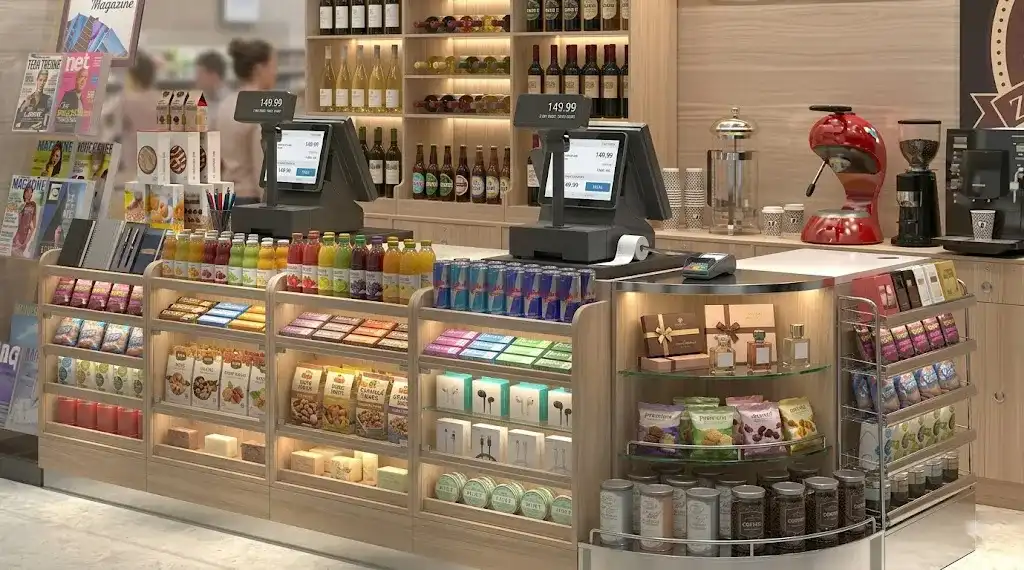

Checkout Display Shelving
- Makes use of high-traffic checkout areas
- Encourages last-minute purchases
- Suitable for compact product display
- Can be customized for different checkout designs
How We Help You Plan Your Supermarket Shelving Layout
Step 1: Send Us Your Store Information
Share your floor plan, store dimensions, or basic project requirements.
Step 2: Tell Us Your Product Categories
Let us know what product groups you want to display, such as grocery, beverages, snacks, produce, bakery, or household goods.
Step 3: Receive Shelving Recommendations
We suggest suitable shelving types, sizes, and configurations based on your store needs.
Step 4: Confirm Layout and Quotation
After the shelving plan is confirmed, we provide a detailed quotation and production proposal.
Step 5: Production and Shipment
We arrange manufacturing, packaging, and shipment according to the project schedule.
Supermarket Shelving Layout Solutions by Store Type

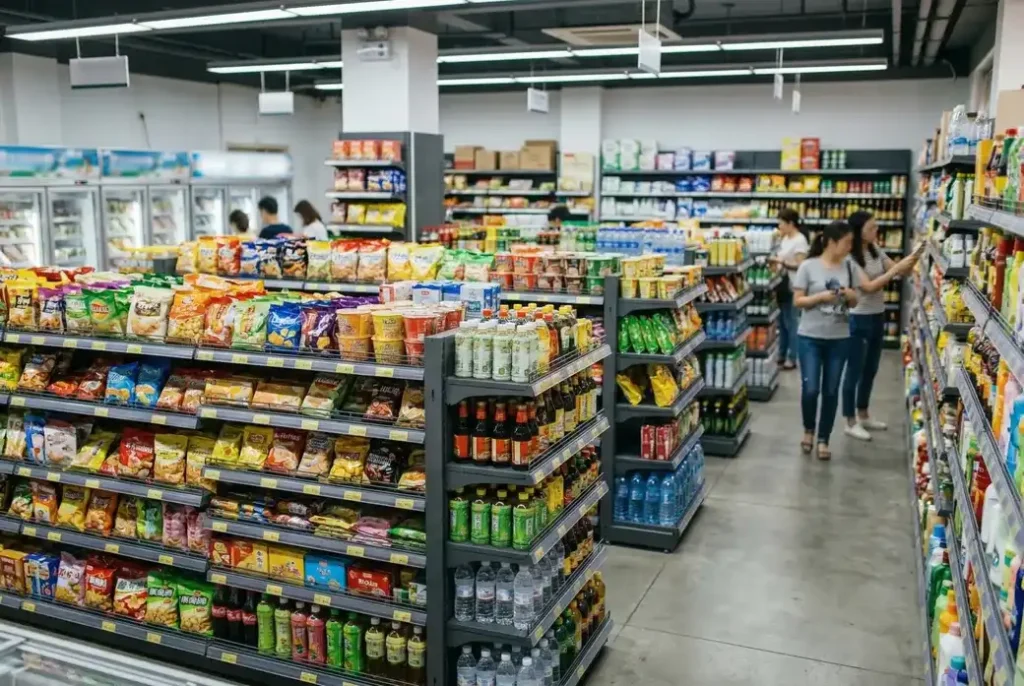

Small Supermarket or Mini Market Layout
Small stores usually need compact shelving layouts that maximize display capacity while keeping aisles clear and comfortable.
Recommended shelving:
- Wall shelving
- Narrow gondola shelving
- End cap displays
- Compact checkout shelves

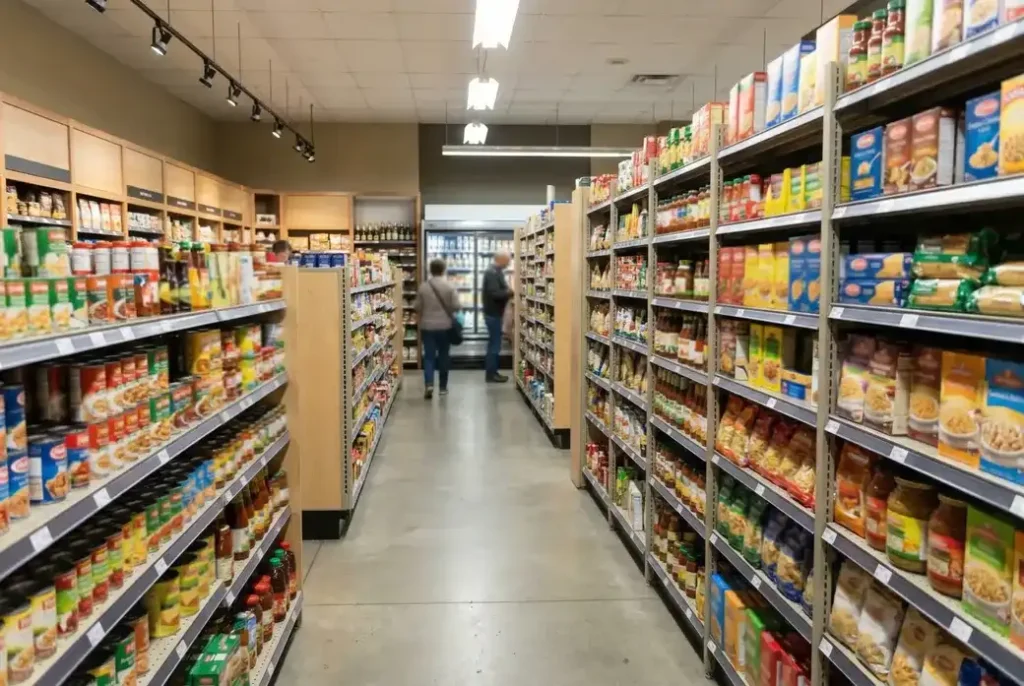

Community Grocery Store Layout
Community stores often focus on daily essentials, snacks, beverages, and fresh basics. Layouts should be simple, practical, and easy to maintain.
Recommended shelving:
- Standard wall shelving
- Double-sided gondola shelving
- Fresh produce racks
- Promotion end caps

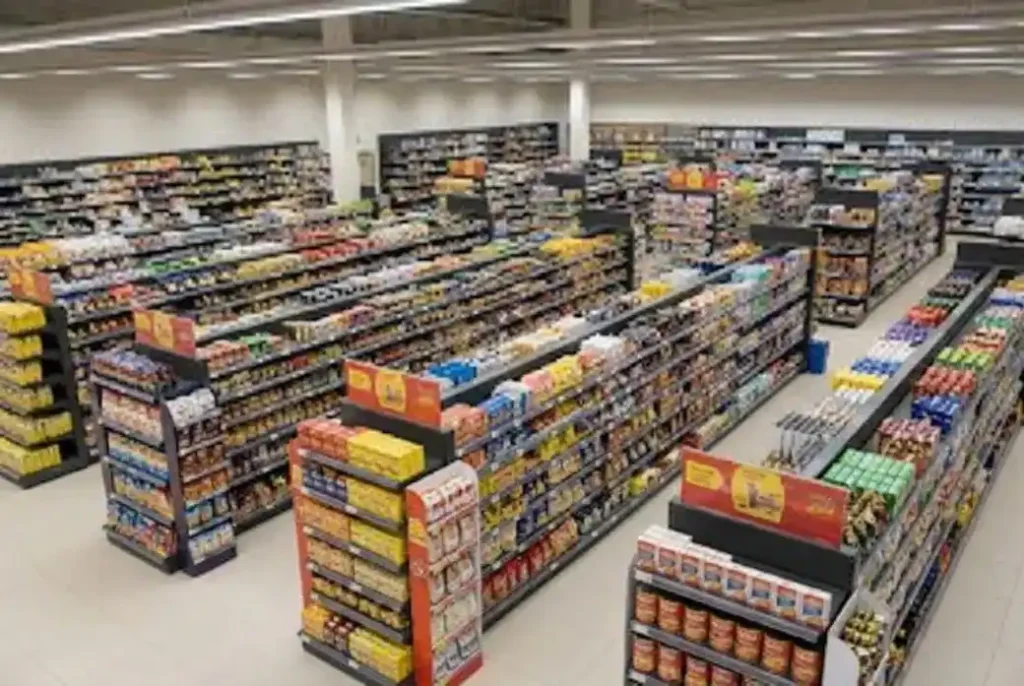

Large Supermarket or Hypermarket Layout
Large-format supermarkets require a more systematic approach to zoning, traffic flow, and display efficiency.
Recommended shelving:
- Full gondola aisle systems
- Perimeter wall shelving
- Dedicated promotional areas
- Specialized fixtures for fresh, bakery, and seasonal displays
Custom Supermarket Shelving Layout Support from a Direct Manufacturer
We are a direct supermarket shelving manufacturer providing product supply and project support for overseas buyers. In addition to standard shelving products, we help customers select suitable shelving systems based on store dimensions, product categories, and display requirements.
- Factory-direct supermarket shelving supply
- Custom sizes, colors, and shelf configurations
- Support for different store layouts and display zones
- CAD or 3D layout assistance for selected projects
- OEM and ODM service available
- Export packaging and international shipment support
If you have a store floor plan, store dimensions, or category list, our team can recommend suitable supermarket shelving options and help you build a more efficient layout.
FAQ About Supermarket Shelving Layout Planning
A supermarket shelving layout should be planned based on store size, product categories, aisle width, customer flow, shelf height, and promotional display needs. A good layout improves space use, product visibility, and restocking efficiency.
The most common supermarket shelving types include gondola shelving for central aisles, wall shelving for perimeter display, end cap shelving for promotions, and specialized racks for produce, bakery, and checkout areas.
Shelf height depends on product type, customer accessibility, and store design. The ideal height should maximize display space without making products difficult to reach or reducing overall visibility.
We usually need your store size, floor plan, preferred shelving types, quantities, product categories, and destination country.
